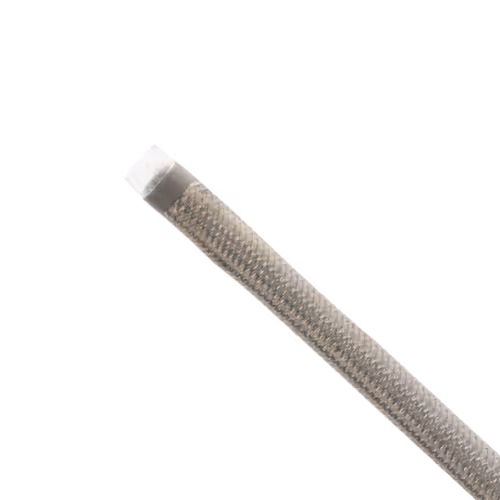

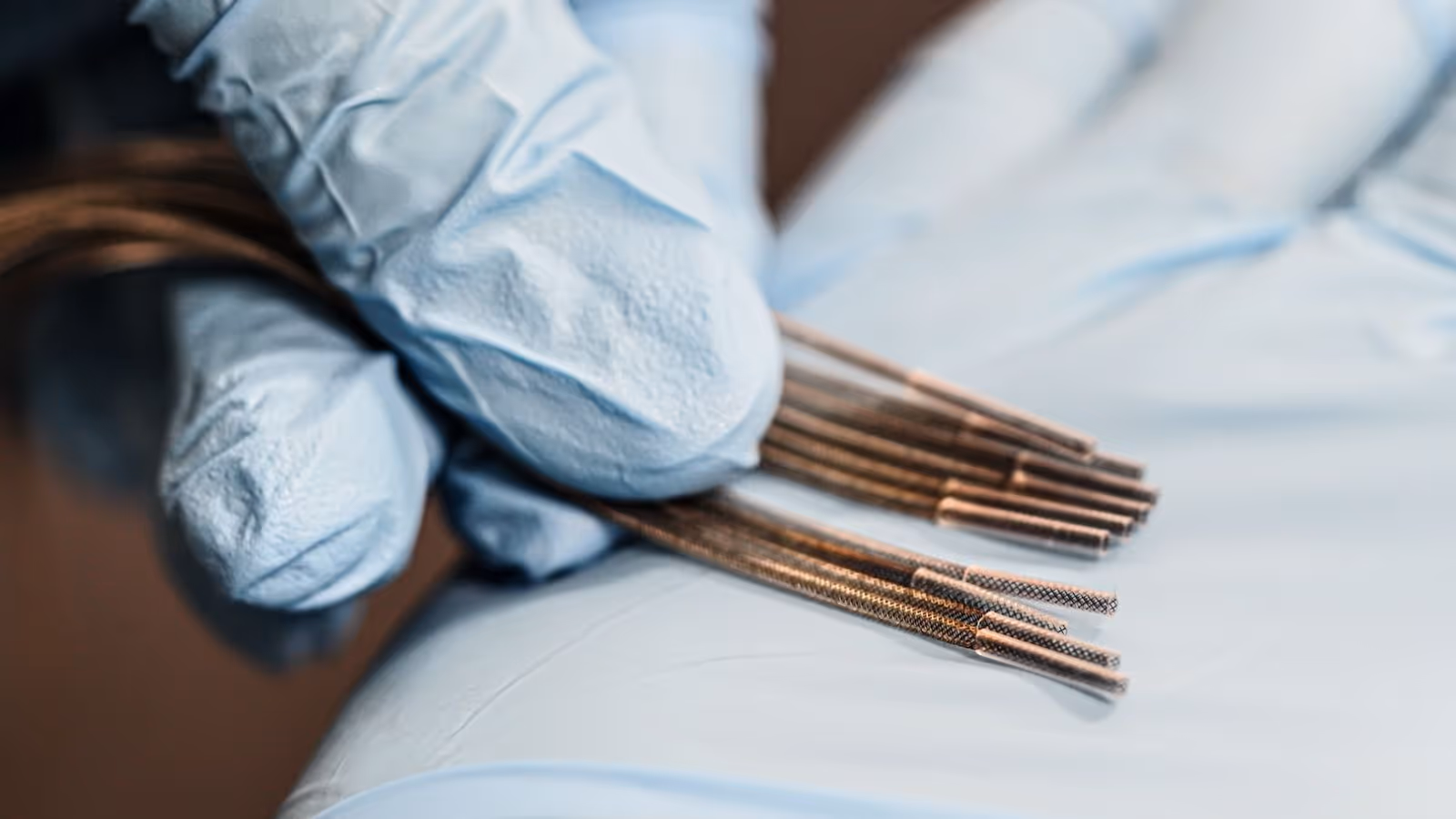

Braiding & Coiling Catheter Reinforcement

Cirtec excels at creating reinforced sheaths that combine the strength and flexibility required for today’s complex medical devices. Our braiding and coiling expertise includes:

• Wire Materials - We use a range of materials such as 302/304V Stainless Steel, Nitinol, 17-7PH, MP35N, Elgiloy, and Tungsten, ensuring optimal performance and biocompatibility
• Coil Materials - Platinum alloys, Tungsten, 302/304V Stainless Steel, MP35N, and Nitinol are utilized to create high-strength coils with enhanced mechanical properties
• Small Profile Solutions - We specialize in delivering complex wires and coils to high-precision specifications with profiles as small as 0.001” Ø, ideal for minimally invasive devices
• Coil Types - We can provide unifilar or multifilar windings, with multi-profile and multi-layer coiling capabilities
• Ends and Configurations - Our capabilities include closed, open, or ground-flat ends, with options for both standard and variable pitch configurations to meet diverse application requirements.

‍

Cirtec offers braided and coiled components that meet the highest standards for torque, pushability, and kink resistance.

Wire Capabilities

• Straightening - 0.090" to 0.002" Ø
• Grinding - Tolerances as tight as ± 0.0001", lengths to 120", taper lengths from 0.005".

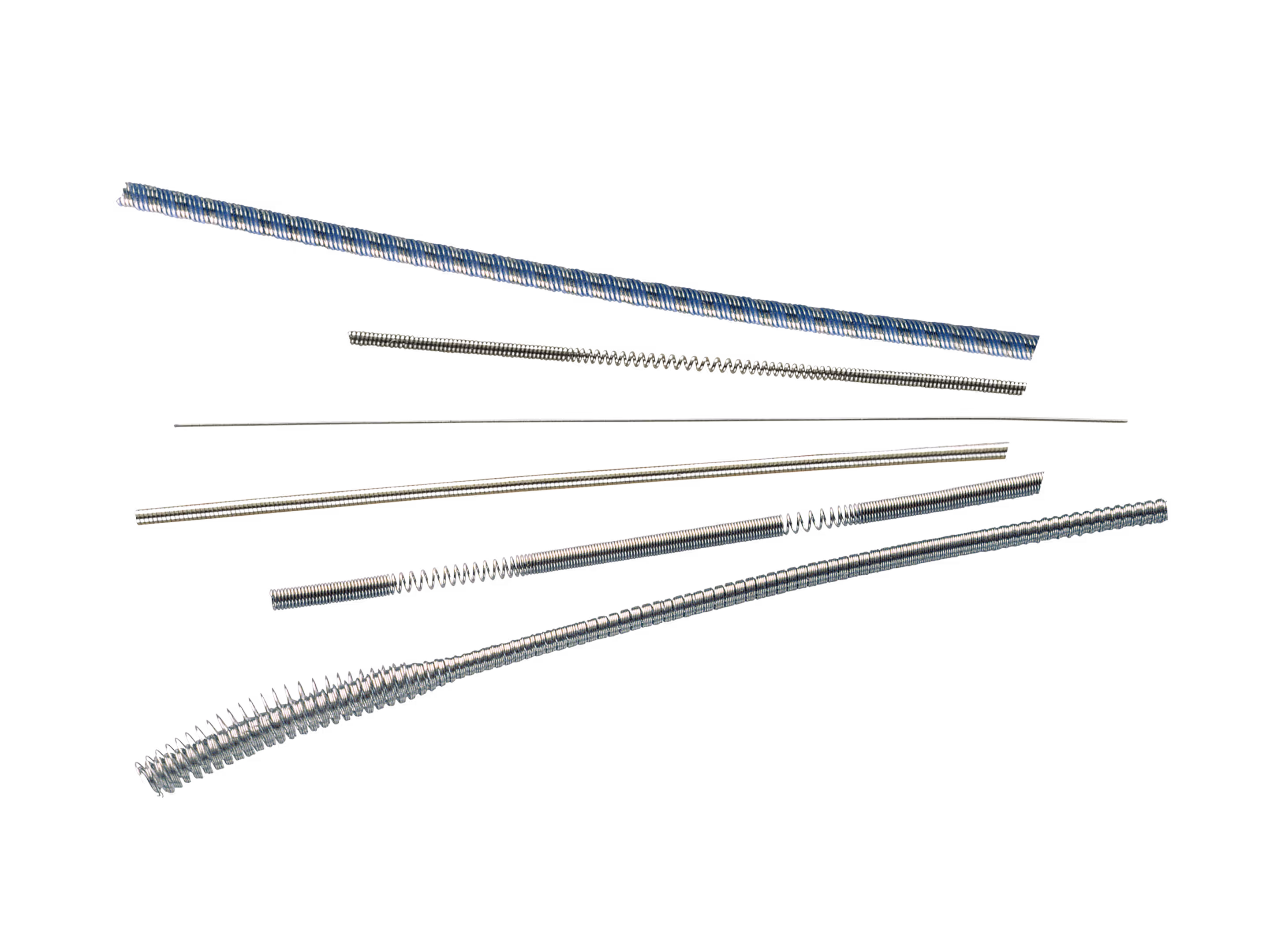

Coil Capabilities

• Coil Lengths - Up to 120”
• Round and Flat Coils - Multi-pitch designs, with tapering and specialized configurations available.

To further enhance the functionality and performance of our braided and coiled components, Cirtec offers a variety of surface coatings and finishing options:

• Coatings - Parylene, Hydrophilic, Silicone for enhanced lubricity and biocompatibility

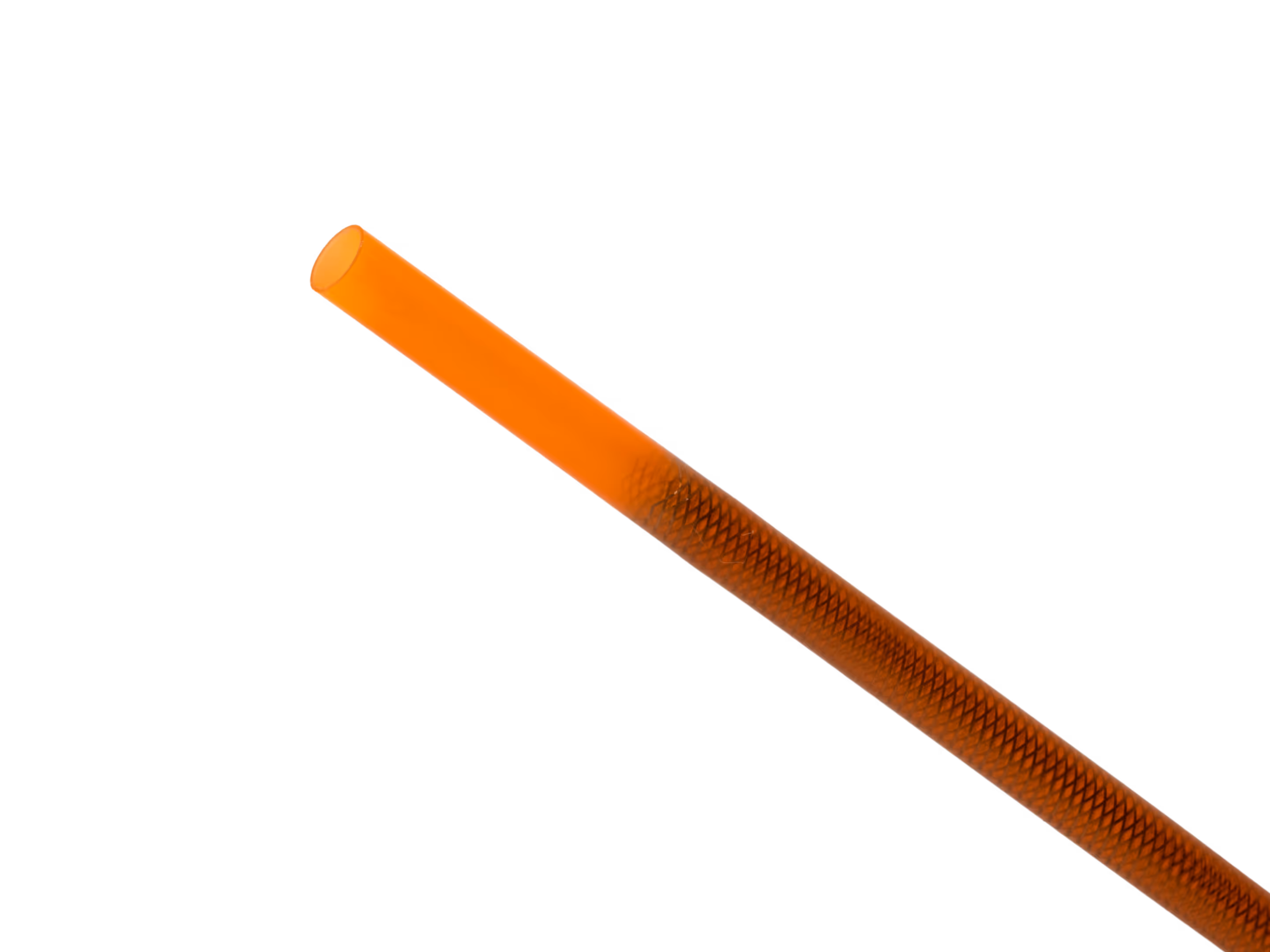

• Polymer Jackets - Polyester, Polyurethane, colored marker bands, and heat shrink solutions provide additional protection and customization
• Heat Treatment & Shape Setting - Ensures precision control over the mechanical properties of braided and coiled components, offering optimal flexibility and strength where needed

‍

Cirtec’s braiding and coiling expertise supports a wide range of medical device markets. Whether for guidewire components, distal core wire transitions, or vascular access sheath coiling, we deliver performance and precision to critical medical applications, including:

• Guidewires and Guidewire Components - For coronary and peripheral vascular interventions as well as neurovascular surgery
• Distal Core Wire Transitions - For PTCA and PTA catheters, supporting flexibility and durability in minimally invasive procedures
• Wire-Based Delivery Systems - For neurovascular surgery and coil delivery applications, offering enhanced torque and pushability
• Atherectomy Devices - Supporting precision and control during complex vascular procedures
• Occlusive Coils - Designed for vascular and neurovascular procedures, providing durability and precise control during placement

‍

Cirtec’s braided and coiled reinforced sheaths are designed to offer superior performance and mechanical properties, ensuring the highest standards for medical devices.

• Kink Resistance - Our designs are optimized to resist kinking, ensuring smooth, reliable operation during critical procedures
• Torque Response - Enhanced torque allows for improved control during interventional procedures, essential for guidewires and catheters
• Pushability - Achieving the ideal balance of flexibility and stiffness, our components provide excellent pushability for navigating complex anatomical pathways

‍

‍

Cirtec offers a broad range of processing capabilities to ensure your braided and coiled components meet the exact specifications required:

• Wire Processing - Includes straightening, centerless grinding, profile grinding, tapering, forming, and flattening for precise control over wire properties
• Coil Processing - Offers tapering, multi-pitch coiling, and round and flat wire configurations to create the right combination of strength and flexibility
• Assembly Capabilities - Include laser welding, plasma welding, soldering, and UV adhesives for seamless integration into medical device subassemblies

‍

‍
